UF Inductor
Characteristics &Application Rang:

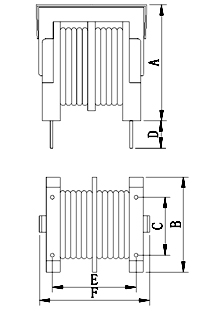

UF series feature small stray capacity, low ripple factor, and little inductance deviation. It is widely used in color TV set power supplies, LED display power supplies, computer switching power supplies and ballasts. PART NO. & DIMENSIONS LINE:
| Part NO. | THRMINAL PINS | Dimensions in mm(inches) | TYPE | |||||
| A | B | C±0.5 | D±0.5 | E±0.5 | F | |||
| HT-UF-9.8 | 4 | 17 | 18 | 8 | 4 | 7 | 13 | V |
| HT-UF-10.5 | 4 | 22 | 20 | 13 | 4 | 10 | 18 | V |
| HT-UF-15.7 | 4 | 22 | 18 | 10 | 4 | 13 | 20 | V |
[Note: power and external dimensions of transformer may be designed to customers requirements.]
