HT 60FS Switching Power Supply


Input/output Specification:

Voltage: 100~240Vac, Universal
Frequency: 50/60 Hz
Current: 1.5 ARMS. MAX @115Vac 60W Load
Inrush Surge Current: 40A Typical, Cold Start@25°C, 115Vac
Output Wattage: 26.4Watts ~ 65Watts MAX (Convection Rating)
Lind Regulation: ± 0.5% Typical
Load Regulation: Main Outputs ±3%
Noise & Ripple: 1% Typical at Full Load (Note2)
Overload / Voltage Protection: Typically 115 ~ 200% Continuous Hiccup Mode
Short Circuit Protection: Continuous Hiccup Mode

NOTE 1: Load regulation tested at 0 ~100% oif max load
NOTE 2: Peak-to-peak for 26.4w~65w (convection rating) @90vac min.; measurements with a 20mhz bandwidth and terminated with a 10uf electrolytic cap. In parallel with a 0.1uf ceramic cap.

Environmental:
Operating Temperature: 0°C to 50°C Ambient
Storage Temperature: -30°C to 85°C
Humidity: Opeating. Non-Condensing, 5% ~ 95%
Vibration: Random Operating 2.4GRMS / MAX. 3AXES 50 ~ 500Hz 10 Minutes / AXIS
Shock: Operating Half Sine 20 GPK / MAX. 3 AXES 10ms 6 Shocks Total

General Specification:
Turn-on Time: 3sec max at full load @ 115vac
Hold-up Time: 16ms typi8cal at full load @ 115vac
Mtbf demostrated: > 100,000 hours at full load and 25 degree ambient conditional

Electromagnetic Compatibility Specifications:
Emi Conducted/Radiated: fcc & cispr class b
Designed to meet en61000-3-3, -4-2, -3, -4, -5, -6, -8, -11

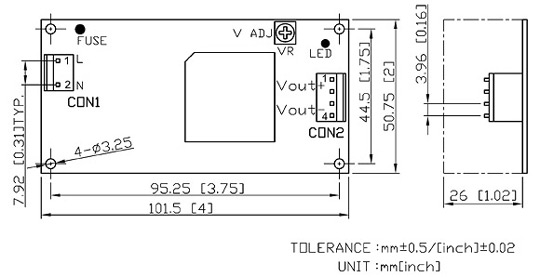

Connector Type & Pin Assignments:
