EI Transformer
Characteristics &Application Rang:

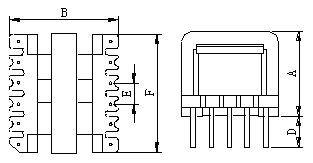

EI power supply transformers are made of good quality silicon sheet, which loses little power. This kind of transformers features low no-load loss, high output power, efficiency, low temperature, and low noise. They are widely used in air-conditioners, VCD, Hi-fi Audios, power amplifiers, power supply devices, metering devices and others. PART NO. & DIMENSIONS LINE:
| Output power( VA ) | Type | Dimension(L*H*W) | lnsulation grade |
| 0.5-1.2 VA | EI-28 | 28*27*35 | B |
| 1.2-3.0 VA | EI-35 | 35*30*35 | B |
| 3.0-10 VA | EI-41 | 41*35*48 | B |
| 10-20 VA | EI-48 | 48*40*55 | B |
| 20-50 VA | EI-57 | 57*50*65 | B |
| 50-80 VA | EI-66 | 66*57*80 | B |
| 80-100 VA | EI-76 | 76*65*85 | B |
| 100-150 VA | EI-86 | 86*72*88 | B |
| 120-220 VA | EI-96 | 96*82*100 | B |
| 220-400 VA | EI-114 | 114*97*130 | B |
| 400-600 VA | EI-133 | 133*112*140 | B |
[Note: power and external dimensions of transformer may be designed to customers requirements .]
