HT 45FST Switching Power Supply


Input/output Specification:
Voltage: 100-240 vac, universal
Frequency: 47-63
Current: 1.5 arms. Max @115 vac 90w load
Inrush Surge current: 30a typical, cold start@25 degree, 115vac
Output Wattage: 26.4watts ~ 65watts max (convection rating)
Lind Regulation: ±0.5 % typical
Load Regultion: main outputs ±5%, aux outputs ±10% typical (note 1)
Noise & Ripple: 1% Typical at full load (note 2)
Overload / Voltage Protection: typically 115~200% continuous hiccup mode
Short Crcuit Protection: Continuous hiccup mode
Overshoot / Undershoot:5%Max, @Turn-on/Turn-off

NOTE 1: Load regulation tested at 0 ~100% oif max load
NOTE 2: Peak-to-peak for 26.4w~65w (convection rating) @90vac min.; measurements with a 20mhz bandwidth and terminated with a 10uf electrolytic cap. In parallel with a 0.1uf ceramic cap.

Environmental:
Operating Temperature: 0°C to 50°C ambient, derated each output at 2.5% per °C from 50°C to 70°C
Storage Temperature: -40°C to 85°C
Humidity: Operating, non-condensing, 5% to 95%
Vibration: Random operating 2.4 grms/max. 3 axes 50~500hz 10 minutes/axis
Shock: Operating half sine 20 gpk/max. 3 axes 10ms 6 shocks total

General Specification:
Turn-on Time: 3sec max at full load @ 115vac
Hold-up Time: 16ms typi8cal at full load @ 115vac
Mtbf demostrated: > 100,000 hours at full load and 25 degree ambient conditional

Electromagnetic Compatibility Specifications:
Emi Conducted/Radiated: fcc & cispr class b
Designed to meet en61000-3-3, -4-2, -3, -4, -5, -6, -8, -11

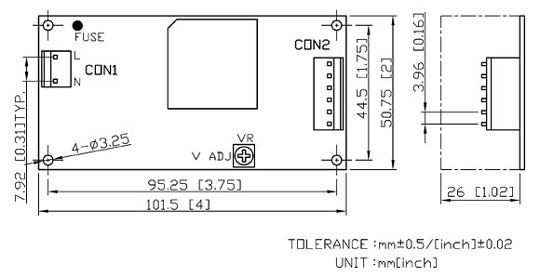

Connector Type & Pin Assignments:
