HT 60E Power Adaptor

Input/Output Specification:
Input Voltage: AC 100Vac ~ 240 Vac 50/60Hz
Output Power: 36W
Output Voltage: 9.0V / 12V / 19V / 24V / 48V
Voltage Regulation: ±5%

General Specification:
Operating Temperature: 0 ~ 40°C
Operating Relative Humidity: 5~95% RH
Storage Temperature: -40 ~ 85°C
Over Current Protection: Auto Recovery at 120%~200% of Rated Load
Over Voltage Protection: Auto Recovery
Short Protection: Auto Recovery
Withstanding Voltage: 1500Vac (Class I) & 300Vac (Class II)
Insulation Resistance:100MOhm min @ DC 500V
Leakage Current: 0.75mA Max (Class I) 0.25mA Max(Class II)
EMI: FCC & CISPR22 Class B
EMS: EN 61000-4-2, -3, -4, -5, -6, -11
Efficiency: Meet CEC Level IV
83% (by model) Min@ 115Vac and Rated Load
83% (by model) Min @ 230Vac and Rated Load
No Load Standby Power: 0.5W Max @ 230Vac

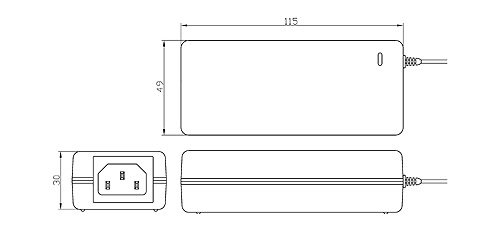

Dimesion (W x L x H mm):
123 x 54 x 35 mm
AC Inlet Type: IEC 320 C6 / C8 / C14 (Optional)

HT60E Model List
