HT 12W Power Adaptor

Input/Output Specification:
Input Voltage: AC 100Vac ~ 240 Vac 50/60Hz
Output Power: From 6.6W ~ 12W
Output Voltage: 3.3V / 5.0V / 9.0V / 12V / 15V / 24V
Voltage Regulation: ± 5.0%

General Specification:
Operating Temperature: 0 ~ 40°C
Operating Relative Humidity: 5 ~ 95% RH
Storage Temperature: -40 ~ 85°C
Over Current Protection: 120% ~ 220% of Rated Load
Over Voltage Protection: Auto Recovery
Short Protection: Auto Recovery
Withstanding Voltage: 300Vac (Class II)
Insulation Resistance: 100MOhm min @ DC 500V
Leakage Current: 0.25mA Max (Class II)
EMI: FCC & CISPR22 Class B
EMS: EN 61000-4-2, -3, -4, -5, -6, -11
Efficiency: Meet CEC Level 4
LTE12W-S0 60% Min @ 115Vac and Rated Load
LTE12W-S1 68% Min @ 115Vac and Rated Load
LTE12W-SY, S2, S3, S4 75% Min at 115Vac& Rated Load
No Load Standby Power: 0.5W Max @ 230Vac

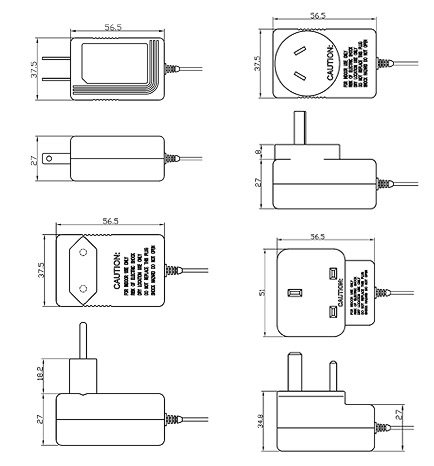

Dimesion (W x L x H mm):
U.S.: 56.5 x 37.5 x 27 mm
E.U.: 56.5 x 37.5 x45.2 mm
U.K.: 56.5 x 51 x 34.8 mm
A.U.: 56.5 x 37.5 x 35 mm
LTE12W Model List
Model No Voltage Current
LTE12W-S0 3.3V 2.0A
LTE12W-S1 5.0V 2.0A
LTE12W-SY 9.0V 1.3A
LTE12W-S2 12V 1.0A
LTE12W-S3 15V 0.65A
LTE12W-S4 24V 0.5A
