HT 90S Switching Power Supply


Input/output Specification:

Voltage: 90 - 264vac, universal
Frequency: 47-63
Current: 1.2 arms. Max @115 vac 90w load
Inrush Surge Current: 30a typical, cold start@25 degree, 115vac
Output Wattage: 90watts max (convection rating)
Line Regulation: ±1.0 % typical
Load Regultion: main outputs ±5%, aux outputs ±10% typical (note1)
Noise & Ripple: 1% Typical at full load (note2)
Overshoot/Undershoot:5%Max, @Turn-on/Turn-of

Humidity: Operating, non-condensing, 5% to 95%
Vibration: Random operating 2.4 grms/max. 3 axes 50~500hz 10 minutes/axis
Shock: Operating half sine 20 gpk/max. 3 axes 10ms 6 shocks total

General Specification:
Efficency: >80% typical at full load
Turn-on time: 3sec max. at full load @ 115vac
Hold-up time: 16ms typicial at full load @ 115vac
MTBF demonstrated: >25,000hours at full load and 25°C ambient conditions

Electromagnetic Compatibility Specifications:
EMI Conducted/ Radiated: FCC & CISPR CLASS B
Designed to Meet EN61000-3-3, -4-2, -3, -4, -6,-8, -11

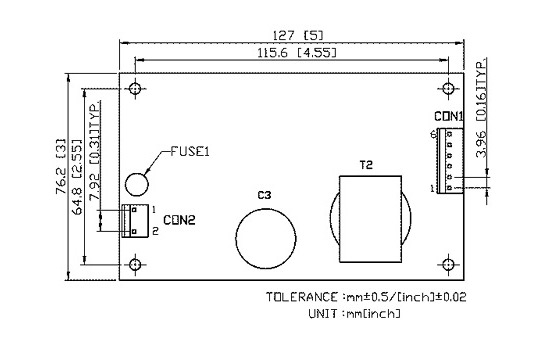

Connector Type & Pin Assignments:

NOTE 1: Load regulation tested at 0 ~100% oif max load
NOTE 2: Peak-to-peak for 90w (convection rating) @90vac min. ; measurements with a 20MHz bandwidth and terminated with a 10uF electrolytic cap. In parallel with a 0.1uF ceramic cap.

Environmental:
Operating Temperature: 0°C to 50°C ambient, derated each output at 2.5% per °C from 50°C to 70°C
Storage Temperature: -40°C to 85°C
