HT 120F Switching Power Supply

Input/output Specification:
Voltage: 90 ~ 264vac, Universal
Frequency: 47-63 Hz
Current: 1.6 arms. Max @115 Vac 122W load &
0.8 arms.Max @ 230 Vac 122W load
Inrush Surge Current: < 40 Ap-pl. @ 115Vac (Cold start at 25 degree) &
< 70 Ap-pl. @230Vac (Cold start at 25 degree)
Output Wattage: @ Convection rating: 80 Watts Max
@ With 15CFM Forced Air Rating: 122 Watts Max
Overshoot/Undershoot Output Range: @ Turn-on/Turn-off < 5%

Note 1: Peak current lasting< 30secs with a maximum 10% duty cycle
Note 2: Cross/Load regulation is tested at 10% ti 100% of rated load and other outputs are set at 50% of rated load
Note 3: Peak-to-peak for 80w (convection rating) @90vac min; 122W (With 15CFM forced ari) @ 100Vac min; measurements with a 20MHz bandwidth and terminated with a 10uF electrolytic cap. In parallel with a 0.1uF ceramic cap.

Environmental:
Operating temperature: 0°C to 40°C Ambient
Storage Temperature: -40°C to 85°C
Humidity: @non-condensing, 5% to 95%
Vibration: Random operating, 2.4 Grms/Max. 3 axes, 50~500Hz 10 minutes/axis
Shock: Operating, half sine, 3 Axes, 10mS, 6 shocks total 20 Gpk/Max

General Specification:
Efficency: > 78%@115 Vac with full foad; > 80% @ 230Vac with full load
Turn-on Time: < 2sec @ 115Vac with full load
Hold-up Time: > 10ms @ 115Vac With convection rating
MTBF demonstrated: > 25,000 hours @ 25 degree with full load, MIL-HDBK-217F

Electromagnetic Compatibility Specifications:
EMI Conducted/Radiated: FCC PART 15 & CISPR22 & EN55022 CLASS
Designed to meet EN61000 -3-2, -3-3, -4-2, -4-4, -4-5, -4-6, -4-11

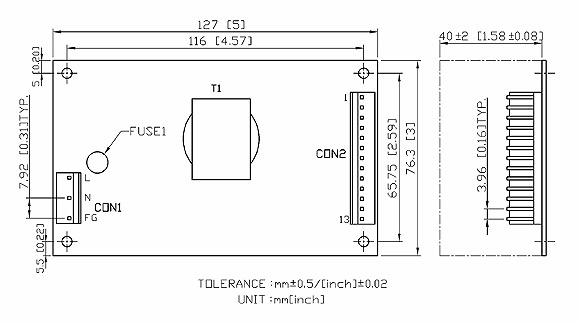

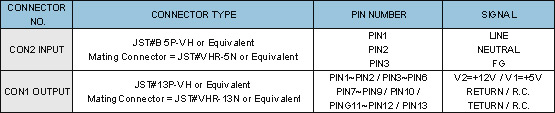

Connector Type & Pin Assignments:
