EP Transformer
Characteristics &Application Rang:
EP series feature low magnetic leakage, low loss, wide operating frequency and strong interference immunity. They are widely used in switching supplies, fax machines, TV sets and displays.PART NO. & DIMENSIONS LINE:

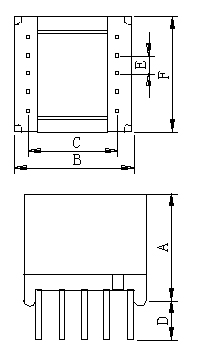

| Part NO. | THRMINAL PINS | Dimensions in mm(inches) | |||||
| A | B | C±0.5 | D±0.5 | E±0.5 | F | ||
| HT-EP-7 | 6 | 9.6 | 7.4 | 5.08 | 4 | 2.54 | 9.3 |
| HT-EP-10 | 8 | 11.8 | 11 | 7.5 | 4 | 2.5 | 11 |
| HT-EP-13 | 10 | 12.7 | 13.5 | 10 | 4 | 2.5 | 13.2 |
| HT-EP-17 | 8 | 15.7 | 19 | 15 | 4 | 5 | 19 |
| HT-EP-20 | 10 | 19.6 | 22 | 17.78 | 4 | 5.08 | 25.1 |
[Note: power and external dimensions of transformer may be designed to customers requirements.]
