HT 18W Power Adaptor


Input/Output Specification:

Input Voltage: AC 100Vac ~ 240 Vac 50/60Hz
Output Power: 18W
Output Voltage: 3.3V / 5.0V / 6.3V / 9.0V / 10.5V / 12V / 15V / 24V
Voltage Regulation: 3.0% ~ 6.0% by Model

General Specification:
Operating Temperature: 0 ~ 40°C
Operating Relative Humidity: 5 ~ 95% RH
Storage Temperature: -40 ~ 85°C
Over Current Protection: Auto Recovery at 120% ~ 200% of Rated Load
Over Voltage Protection: Auto Recovery
Short Protection: Auto Recovery
Withstanding Voltage: 300Vac (Class II)
Insulation Resistance:100MOhm min @ DC 500V
Leakage Current: 0.25mA Max(Class II)
EMI: FCC & CISPR22 Class B
EMS: EN 61000-4-2, -3, -4, -5, -6, -11
Efficiency: Meet CEC LEVEL IV
65% ~ 80% (by model) Min@ 115Vac and Rated Load
65% ~ 80% (by model) Min @ 230Vac and Rated Load
No Load Standby Power: 0.5W Max @ 230Vac

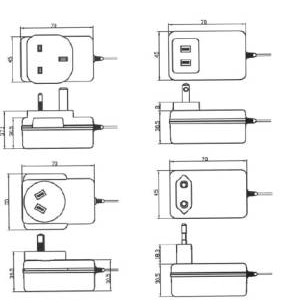

Dimesion (W x L x H mm):
U.S.: 45 x 70 x 38.5 mm
U.K.: 45 x 70 x 38 mm
E.U.: 45 x 70 x 49 mm
A.U.: 45 x 70 x 39.5 mm
LTE18W Model List
Model No Voltage Current
LTE18W-S0 3.3V 3.5A
LTE18W-S1 5.0V 3.0A
LTE18W-SU 6.3V 2.0A
LTE18W-SY 9.0V 2.0A
LTE18W-SN1 10.5V 1.5A
LTE18W-S2 12V 1.5A
LTE18W-S3 15V 1.2A
LTE18W-S4 24V 0.75A
