HT 45FSD Switching Power Supply

Input/output Specification:
Voltage: 100 ~ 240 Vac, Universal
Frequency: 50 / 60 Hz
Current: 1.0 ARMS. MAX @ 115 Vac 45W Load
Inrush: 40A Typical, Cold Start @ 25°C,115Vac
Output Wattage: 45W MAX
Line Regulation: ±1%
Load Rugulation: ±5%
Ripple & Noise: 1% Typical @ Full Load (NOTE2)
Overload / Voltage Protection: Typical 115 ~ 200% Continuous Hi Ccup Mode
Short Circuit Protection: Continuous Hi Ccup Mode
Overshoot/Undershoot: 5% MAX, @ Turn-On / Turn-Off  NOTE 1: LOAD REGULATION TESTED @ 0 ~ 100 % OF MAX LOAD
NOTE 2: PEAK TO PEAK FOR 45W (CONVECTION RATING) @ 90Vac MIN;MEASUREMENT WITH A 20MHz BANDWIDTH AND TERMINATED WITH A 10uF ELECTROLYTIC CAP, IN PARALLEL WITH A 0.1uF CERAMIC CAP.

Environmental:
Operating Temperature: -20°C TO 50°C Ambient
Storage Temperature: -30°C TO 85°C
Humidity: Operating, NON-Condensing, 5% TO 95%
Vibration: Random Operating 2.5 GRMS / MAX 3. AXES 50 ~ 500Hz 10 Minutes/ Axis
Shock: Operating Half Sine 20 GPK/ MAX. 3AXES 10ms 6 Shocks Total

General Specification:
Turn on Tim: 2 SEC MAX @ FULL LOAD @115VAC
Hold-up Time: 12 ms TYPICAL @ FULL LOAD @115VAC
MTBF Demonstrated: > 25,000 HOURS @ FULL LOAD AND 25°C AMBIENT CONDITIONAL

Electromagnetic Compatibility Specifications:
EMI Conducted / Radiated: FCC & CISPR CLASS B
DESIGNED TO MEET EN61000-3-3, -4-2, -3, -4, -5, -6, -8, 11

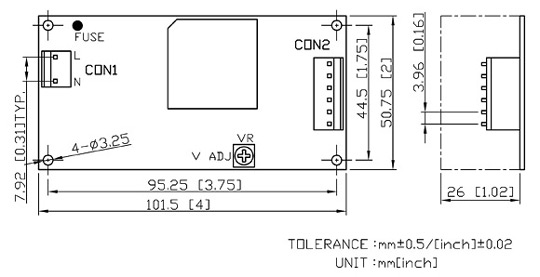

Connector Type & Pin Assignments:
